Furnace & Heating System Core Components: Igniting Home Warmth

A Homeowner's Guide to Furnace Components: Decoding Your Home's Heat Source

That sudden silence on a cold night, a strange clanking from the basement, or the simple fact that the air from your vents isn’t warm—these are the moments when your furnace stops being background noise and becomes a pressing concern. You know something is wrong, but what? Understanding the core components of your heating system is the first step from uncertainty to a confident decision.

You’re not looking for a complex engineering manual. You’re looking for clarity. This guide is designed to help you decode your furnace's signals, understand what's happening inside that metal cabinet, and know when a quick look is appropriate versus when it's time to call for professional help.

Your Furnace's Inner Workings: A Visual Roadmap

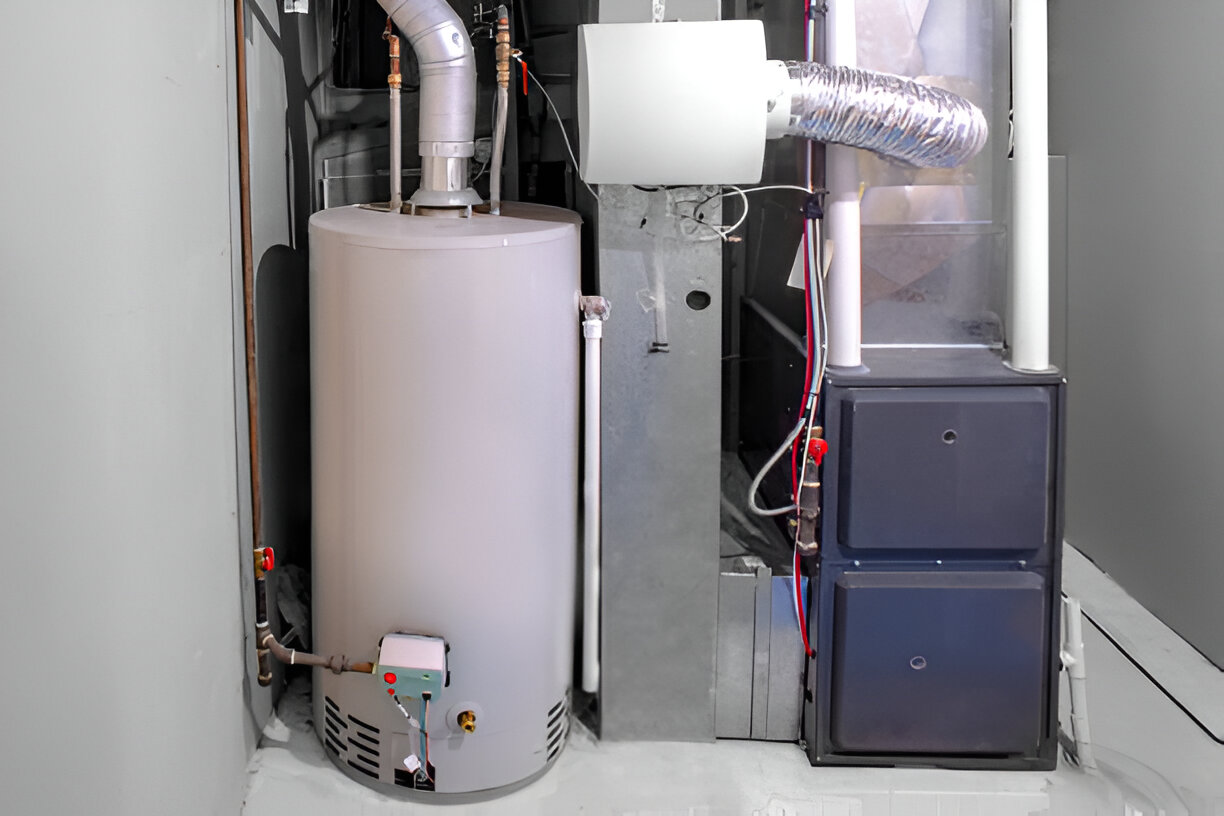

Before we dive into specifics, let's get oriented. A gas furnace is a coordinated system where each part has a critical job in the sequence of generating heat. Think of this diagram as the blueprint for your home's warmth.

The Most Common Culprits: Addressing the "Big Three" Failure Points

While a furnace has many parts, years of experience show that a few components are responsible for the majority of service calls. If your heat is out, the problem is likely one of these three.

1. The Igniter & Flame Sensor: The Spark of Warmth

What They Do: This duo works together to safely start and sustain the heating process. The igniter—either a modern hot surface igniter or an older pilot light—provides the initial spark or glow to light the gas. The flame sensor is a safety device that confirms a flame is actually present. If it doesn't detect a flame, it shuts the gas valve to prevent raw gas from filling your home.

Signs of Trouble:

• Your furnace clicks on as if it's about to start, but the burners never light.
• The burners ignite for a few seconds, then shut off abruptly and repeat the cycle.
• You have an older furnace with a pilot light that won't stay lit.

When to Call a Pro: While cleaning a flame sensor can sometimes be a DIY task for those with experience, replacing an igniter involves handling delicate electrical components. If you notice the igniter isn't glowing or the system is "short cycling," it’s safest to seek a diagnosis from a certified technician.

2. The Heat Exchanger: The Heart of Your Furnace (and a Critical Safety Barrier)

What It Does: The heat exchanger is a set of tubes or coils that gets superheated by the gas burners. As your furnace's blower motor moves air over the exterior of these hot tubes, the air warms up before being distributed through your home. Crucially, it keeps the breathable air of your home completely separate from the toxic combustion gases inside.

Signs of Trouble:

• Loud banging, popping, or rattling noises coming from the furnace shortly after it starts.
• A faint, unpleasant smell similar to formaldehyde.
• Visible cracks, rust, or corrosion on the component itself.
• Most Importantly: Your carbon monoxide detectors are going off. This is an emergency.

A cracked heat exchanger is one of the most serious furnace failures. It allows dangerous combustion gases, including carbon monoxide (CO), to mix with the air circulating through your home.

When to Call a Pro: Immediately. There is no DIY fix for a faulty heat exchanger. If you suspect an issue, turn off your furnace, ventilate your home, and schedule a professional furnace inspection. Your family's safety depends on it.

3. The Blower Motor: The Lungs of Your System

What It Does: While not a combustion component, the blower motor is essential for heat delivery. After the heat exchanger warms the air, this powerful fan is what pushes that warm air through your ductwork and into every room.

Signs of Trouble:

• The furnace is running and you can hear the burners, but little to no air is coming from your vents.
• You hear a loud humming or a high-pitched squealing from the furnace cabinet.
• The system overheats and shuts down because air isn't moving across the heat exchanger fast enough.

When to Call a Pro: Blower motor issues often involve complex electrical components like capacitors or the motor itself. Due to the high voltages and the risk of misdiagnosis, this repair is best left to a professional.

A Deeper Look: The Combustion Components

Beyond the "big three," several other parts are essential for safe and efficient operation.

Gas Valve

• What It Does: Think of it as the gatekeeper. It controls the flow of natural gas from the supply line to the burners, opening and closing precisely when instructed by the thermostat and safety sensors.
• Signs of Trouble: The igniter glows, but the burners never light (indicating no gas is being released), or the furnace won't shut off even when the house is warm.
• Professional Repair Indicator: Gas line work is not a DIY job. Any issue suspected to be with the gas valve requires professional furnace repair services.

Burners

• What It Does: These are the jets where gas and air mix and are ignited to create the flame that heats the heat exchanger.
• Signs of Trouble: Soot buildup around the furnace, a weak or flickering yellow flame instead of a steady blue one, or unusual rumbling sounds during ignition.
• DIY Safety Check: You can visually inspect the flame color. A healthy flame is blue with a small yellow tip. A mostly yellow or orange flame indicates an issue with the fuel-to-air mixture that needs professional adjustment.

Exhaust Venting (Flue Pipe)

• What It Does: This is your furnace’s chimney. It safely funnels all the toxic byproducts of combustion—like carbon monoxide, soot, and water vapor—out of your home.
• Signs of Trouble: Water pooling around the base of the furnace, rust on the pipe itself, or a system that shuts down shortly after starting (triggered by a pressure switch that detects a blockage).
• Professional Repair Indicator: A blocked or leaking flue pipe can release carbon monoxide into your home. If you see signs of corrosion or blockage, it's a critical safety issue that needs immediate attention.

Safety First: Red Flags That Demand an Immediate Call

Trust your senses. Your furnace will often give clear warnings when there's a serious problem. If you notice any of the following, do not wait:

• The Smell of Gas: If you smell rotten eggs or sulfur, it could be a gas leak. Leave the house immediately, don't use any electronics or light switches, and call your gas utility from a safe distance.
• Carbon Monoxide Alarms: This is a non-negotiable emergency. Get everyone out of the house into fresh air and call 911.
• Scorch Marks: Black or brown marks on or around the furnace cabinet indicate flames are escaping the combustion chamber—a significant fire hazard.
• Major Water Leaks: For high-efficiency furnaces, a significant puddle of water can indicate a blocked condensate line, which can cause water to back up into the unit and damage critical components.

Your Furnace Questions, Answered

What's the most expensive furnace part to fix?

‍Generally, the heat exchanger and the blower motor are the most costly components to replace. A cracked heat exchanger often leads to a decision to replace the entire furnace, as the cost of the part and labor can be a significant percentage of a new unit's price.

Can I replace these furnace parts myself?

‍While changing an air filter is a simple DIY task, most component repairs are not. Working with gas lines, high-voltage electricity, and combustion systems requires specialized tools and training. For your safety and to avoid causing more expensive damage, repairs to parts like igniters, sensors, gas valves, and motors should be handled by a qualified technician.

How can I prevent these parts from failing?

‍The single most effective way to extend the life of your furnace components and prevent unexpected breakdowns is through regular furnace maintenance. During a tune-up, a technician will clean and inspect burners, sensors, and motors, check the integrity of the heat exchanger, and ensure the entire system is operating safely and efficiently.

From Diagnosis to Decision

Understanding the role of each furnace component empowers you to have a more informed conversation about your home's heating system. You can better describe the symptoms you're experiencing and understand what's at stake. Whether it's the simple silence of an igniter that won't glow or the critical warning of a cracked heat exchanger, knowing what's happening inside that box is key.
