Compressor & Condenser Unit: The Outdoor Heart of Your HVAC System

Compressor & Condenser Unit: The Outdoor Heart of Your HVAC System

When your air conditioner suddenly quits on a sweltering Texas afternoon, that metal box humming away outside your house becomes the center of your universe. You know it's important, but you’re not sure what it does or why it stopped. That feeling of uncertainty is exactly what we're going to clear up.

You're in a stressful spot, but don't panic. Many common AC issues have simple fixes you can check yourself in just a few minutes. This guide is designed to walk you through it, helping you understand the heart of your HVAC system—the outdoor condenser and compressor unit—so you can make a confident, informed decision.

Before we dive deep, let's start with the three most common culprits. Check these first:

1. The Thermostat: Is it set to "Cool" and a temperature lower than the current room temperature? Are the batteries fresh?
2. The Breaker: Check your home's electrical panel. Has the breaker for the "Air Conditioner" or "Air Handler" tripped?
3. The Air Filter: A severely clogged filter can restrict airflow and cause the entire system to shut down. When did you last change it?

If you've checked these and your AC is still on the fritz, your focus should turn to the outdoor unit.

What Your AC's Symptoms Are Telling You

Your air conditioner usually gives you clues before it fails completely. Let's decode the most common symptoms and what they mean for your outdoor unit.

Symptom 1: The Unit Won't Turn On at All

You've checked the thermostat and the breaker, but there’s no sign of life from the outdoor unit. No hum, no fan, nothing.

What It Could Mean: This often points to a power issue or a failed starting component.

• Step-by-Step DIY Checks:
  1. Check the Disconnect Switch: Near the outdoor unit, there is a weatherproof electrical box. Open it and ensure the switch or pull-out fuse is in the "On" position. Sometimes these can be accidentally turned off during yard work.
  2. Look for Obvious Damage: Visually inspect the wiring leading to the unit. Do you see any frayed or chewed wires from pests?
• When to Call a Pro: If the disconnect is on and there’s no visible damage, the problem is likely internal. It could be a faulty contactor or a bad transformer. Working with high-voltage components is dangerous, making this the clear "stop here" point. Professional HVAC repair services are necessary to safely diagnose and fix these electrical issues.

Symptom 2: The Fan is Running, But the Air Inside is Warm

You can hear the system running and the fan on the outdoor unit is spinning, but the air coming from your vents is room temperature or warm.

What It Could Mean: This classic symptom indicates your system is moving air, but it's not cooling it. The heat exchange process has broken down, often due to a problem with the compressor or the refrigerant.

• Step-by-Step DIY Checks:
  1. Clean the Condenser Coils: The outside unit is designed to release heat. If the metal fins (coils) are caked in dirt, grass clippings, or cottonwood fluff, it can't do its job. Turn off the power at the breaker and the disconnect switch, then gently spray the coils with a garden hose from top to bottom.
  2. Check for Blocked Airflow: Ensure there's at least two feet of clear space around the entire unit. Overgrown shrubs, fences, or stored items can choke off the airflow it needs.
• When to Call a Pro: If cleaning the unit doesn't solve the problem, you're likely dealing with a more complex issue. This could be a failing compressor—the part responsible for circulating refrigerant—or a refrigerant leak. Both require specialized tools and EPA-certified technicians to handle.

Symptom 3: The Unit Turns On and Off Repeatedly (Short-Cycling)

You hear the outdoor unit kick on, run for just a minute or two, and then shut off, only to repeat the process a few minutes later. This is called short-cycling.

What It Could Mean: Short-cycling is a serious symptom that can quickly damage your compressor. It can be caused by anything from severely restricted airflow (a dirty filter is a prime suspect) to an oversized AC unit or a refrigerant charge issue.

• Step-by-Step DIY Checks:
  1. Double-Check Your Air Filter: This is the #1 cause. A filter that's clogged with dust acts like a blocked artery, preventing your system from breathing properly.
  2. Inspect for Ice: Check the refrigerant lines running from your outdoor unit to the house. Is there ice buildup on them? If so, turn the system off completely to let it thaw and call a professional. This often indicates an airflow or refrigerant problem.
• When to Call a Pro: If a new filter doesn't stop the short-cycling, turn the system off to prevent further damage and schedule a service call. A technician needs to check the refrigerant levels and investigate deeper electrical or mechanical causes.

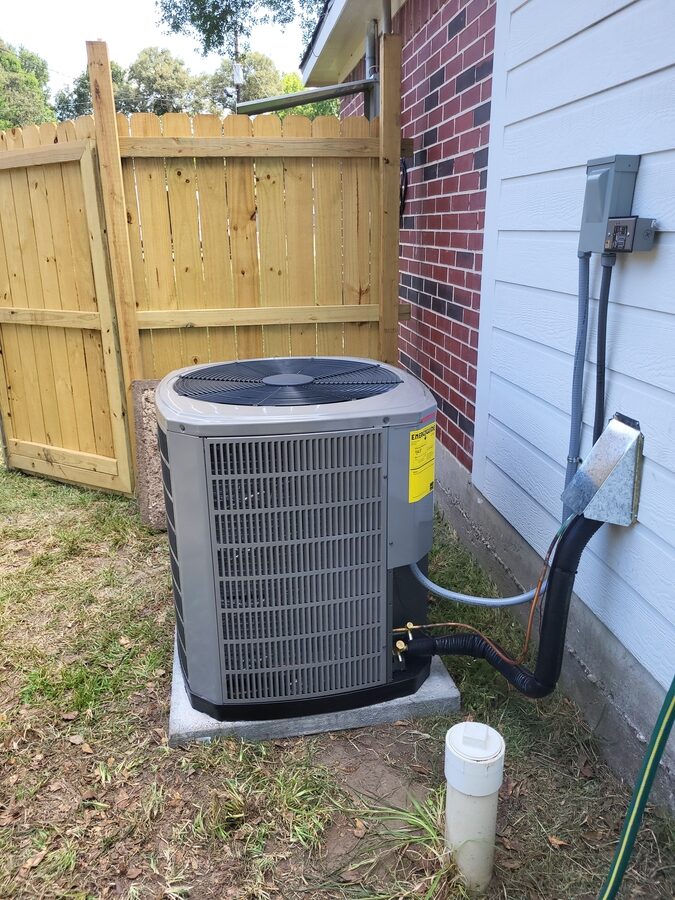

Inside the Outdoor Unit: The Components That Power Your Comfort

Understanding the key players inside your condenser unit demystifies the cooling process and helps you communicate more effectively with a technician.

The Compressor: The Engine of the System

The compressor is the single most important (and expensive) component in your air conditioner. Its job is to pressurize the refrigerant, transforming it from a low-pressure gas to a high-pressure, high-temperature gas. This is the critical first step in the heat removal process.

There are three common types you might find in your unit:

• Reciprocating: The original workhorse, this piston-based compressor is durable but less efficient than modern options.
• Scroll: More common in modern systems, scroll compressors are quieter, more reliable, and significantly more efficient.
• Variable-Speed: Found in high-end systems, these compressors can adjust their output precisely, offering the best energy efficiency and humidity control. They rarely run at full blast, saving you money on electricity bills.

Why do compressors fail? Most failures are due to electrical issues, overheating from dirty coils, or system strain from a refrigerant leak.

The Supporting Cast: Coils, Fan, and Capacitor

While the compressor gets the glory, it can't work alone.

• Condenser Coils: These are the radiator-like fins that wrap around the unit. The hot, high-pressure refrigerant flows through them, and the fan pulls air across the fins to dissipate the heat into the outdoors. This is why keeping them clean is non-negotiable for system health.
• Condenser Fan Motor: This motor powers the large fan blades on top of the unit. Its sole purpose is to draw massive amounts of air through the coils. If this motor fails, heat can't escape, and the compressor will quickly overheat and shut down.
• Capacitor: Think of the capacitor as a battery that gives the compressor and fan motor the jolt of energy they need to start and run. Capacitors wear out over time, especially in the intense Texas heat. A bulging or leaking capacitor is a common failure point and one of the most frequent repairs we see.

The Big Decision: Should You Repair or Replace Your Unit?

When faced with a major repair, like a failed compressor, you're at a crossroads. This is where many homeowners feel pressured. Our goal is to give you a clear framework for making the best long-term decision.

The research shows that a user's biggest hidden fear is being upsold on unnecessary work. We believe in transparency. Here are the factors to consider:

1. The "5,000 Rule": A good industry rule of thumb is to multiply the cost of the repair by the age of your unit in years. If the number is more than $5,000, it’s generally more cost-effective to replace the system.
   • Example: A $900 repair on a 10-year-old unit: $900 x 10 = $9,000. Replacement is likely the wiser choice.
2. Energy Efficiency (SEER Rating): If your current unit is over 10 years old, its SEER (Seasonal Energy Efficiency Ratio) rating is likely far lower than today's minimum standard. A new, high-efficiency system can cut your cooling costs significantly, helping the new HVAC installation pay for itself over time.
3. Refrigerant Type: Is your system still using R-22 refrigerant? This type has been phased out due to environmental regulations. The remaining supply is incredibly expensive, making major repairs on R-22 systems economically impractical.

Making this choice is about balancing the immediate cost of repair against the long-term cost of operation and future reliability.

Frequently Asked Questions

Q: What are the ballpark costs for common outdoor unit repairs?

‍A: Costs vary, but for transparency, here are some typical ranges in our area. A failed capacitor is usually the least expensive repair ($150-$350). A condenser fan motor replacement can range from $400 to $800. A full compressor replacement is the most significant repair, often costing $2,000 or more, which is why the repair vs. replace discussion becomes critical.

Q: Can I just replace the outdoor unit and keep my old indoor unit?

‍A: While technically possible in some cases, it's rarely recommended. Modern outdoor units are designed to work with a matching indoor air handler or furnace coil. Mismatching them can lead to poor performance, reduced efficiency, and premature system failure, often voiding the manufacturer's warranty.

Q: How can I protect my outdoor unit and make it last longer?

‍A: The single best thing you can do is schedule regular professional HVAC maintenance. A technician will clean the coils, check electrical connections, test the capacitor, and lubricate the fan motor—addressing small issues before they become catastrophic failures.
